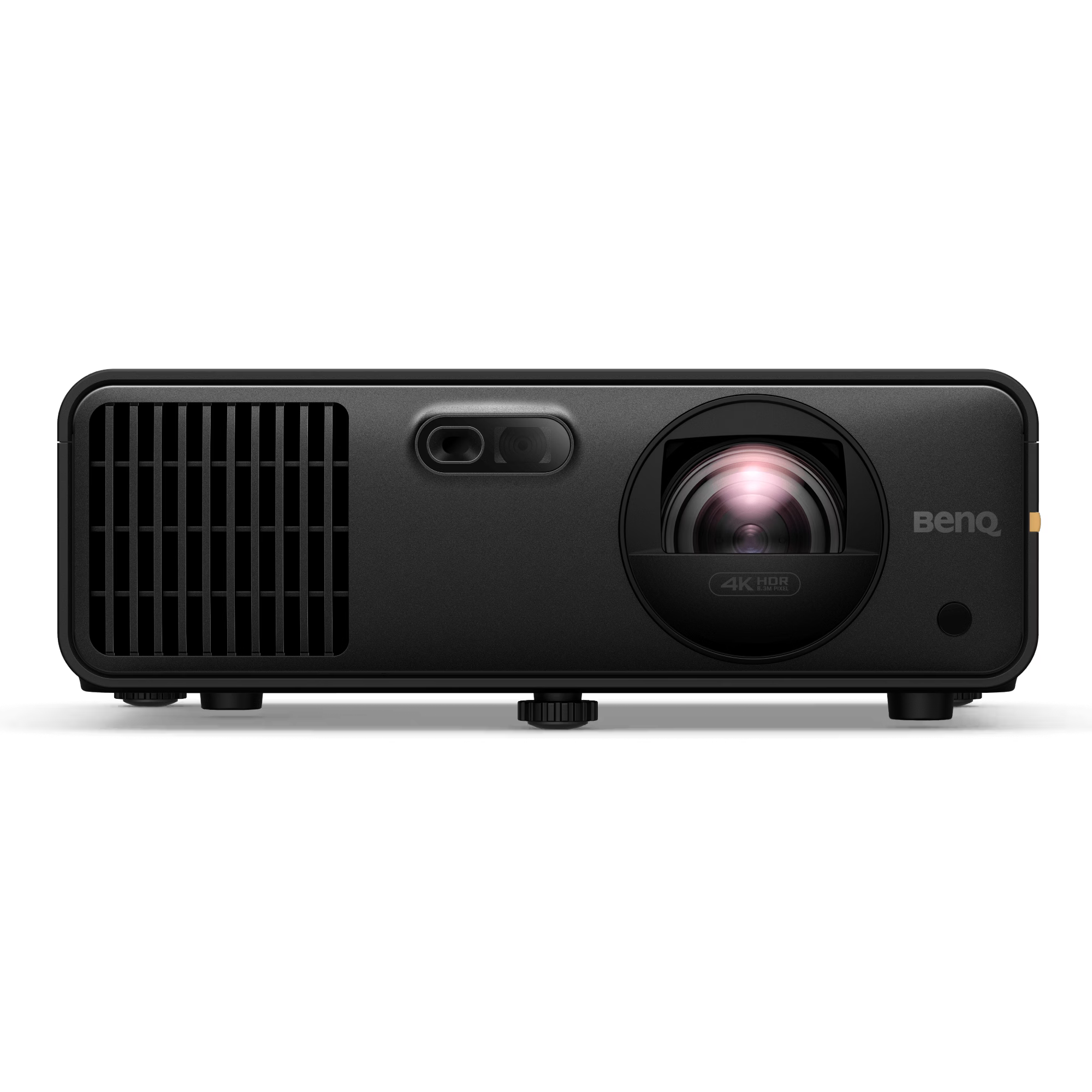

BenQ AK700ST Projector

The BenQ AK700ST is a premium short-throw laser projector built for immersive golf simulation and cinematic home entertainment. With intelligent setup features, high brightness, and precision color tuning, it bridges the gap between gaming and movie use — ideal for simulator rooms, multi-purpose media spaces, or dedicated theater rooms.

Key Features & Benefits

• 4,000 ANSI Lumens Brightness
Delivers ample brightness for environments with moderate ambient light, enabling gameplay or viewing without needing full blackout conditions.

• True 4K UHD Resolution
Native resolution of 3840 × 2160 (≈ 8.3 million pixels) ensures sharp detail and clarity for course visuals, UI elements, and cinematic content.

• Short Throw Lens with Motorized Zoom
With a throw ratio of 0.69 – 0.83 :1 and a 1.2× motorized optical zoom, the AK700ST can create very large images from relatively short distances — perfect for simulator enclosures.
This allows safer projector placement behind the hitting area, reducing shadows and risk of collision.

• Auto Screen Fit & Intelligent Setup Tools
The projector includes Auto Screen Fit — it detects your impact screen’s edges and automatically adjusts zoom, tilt, and focus to fill it properly.
Also features Quick Focus, Corner Fit, and 3D Keystone (± 30° vertical, horizontal, rotation) to fine-tune geometry easily.

• Dedicated Golf Mode with Accurate Color
BenQ’s custom Golf Mode presets optimize greens, skies, and natural course tones to enhance realism in simulation environments.
Color accuracy is strong, with ~95% Rec.709 coverage noted.

• Durable, Low-Maintenance Laser Engine
The sealed, dust-resistant design (IP5X rated) and laser light source remove the need for lamp replacements or frequent filter cleaning.
Light source life is rated up to ~20,000 hours.

• Flexible Connectivity & Support
Includes dual HDMI 2.0b (with HDCP 2.2), USB (A & C), RS-232, and options for wireless dongles.
Supports eARC/HDMI audio return and 7.1 channel pass-through for audio setups.

• Compact & Practical
Measuring approximately 303.5 × 112.4 × 234.5 mm and weighing ~3.4 kg (7.48 lbs), the AK700ST is relatively compact and easy to mount or integrate.
In operation, acoustic noise is ~32 dB (normal) / 29 dB (eco) — quiet enough for immersive use.

• Long Throw Options for Large Screens
BenQ claims it can project up to a 200-inch display (diagonal) depending on throw distance and zoom.
Example distances: 120” at 6.0–7.2 ft, 150” at 7.5–9.0 ft, 180” at 9.1–10.9 ft, 200” at ~10.0–12.1 ft (for 16:9).

Technical Specifications (Highlights)
